Factory Lead Time

7 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

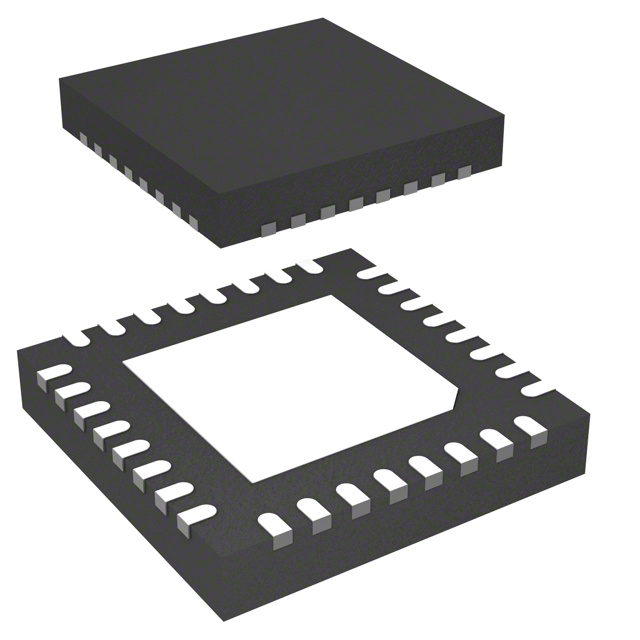

Package / Case

32-UFQFN Exposed Pad

Number of Pins

32

Data Converters

A/D 16x12b; D/A 2x12b

Memory Types

FLASH, SRAM

Number of I/Os

26

ROM(word)

8192

Watchdog Timers

Yes

Operating Temperature

-40°C~85°C TA

Packaging

Tray

Series

AVR® XMEGA® E5

Published

2013

Pbfree Code

yes

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

Number of Terminations

32

Terminal Position

QUAD

Terminal Form

NO LEAD

Supply Voltage

1.8V

Terminal Pitch

0.4mm

Frequency

32MHz

Base Part Number

ATXMEGA16

Qualification Status

Not Qualified

Supply Voltage-Min (Vsup)

1.6V

Interface

2-Wire, I2C, IrDA, SPI, UART, USART

Memory Size

16kB

Oscillator Type

Internal

RAM Size

2K x 8

Voltage - Supply (Vcc/Vdd)

1.6V~3.6V

uPs/uCs/Peripheral ICs Type

MICROCONTROLLER, RISC

Core Processor

AVR

Peripherals

Brown-out Detect/Reset, DMA, POR, PWM, WDT

Program Memory Type

FLASH

Core Size

8/16-Bit

Program Memory Size

16KB 8K x 16

Connectivity

I2C, IrDA, SPI, UART/USART

Bit Size

16

Has ADC

YES

DMA Channels

YES

Data Bus Width

8b

PWM Channels

YES

Number of Timers/Counters

3

EEPROM Size

512 x 8

On Chip Program ROM Width

16

Boundary Scan

NO

Low Power Mode

NO

Format

FIXED-POINT

Integrated Cache

NO

RAM (words)

1024

Number of ADC Channels

16

Number of Serial I/Os

2

Number of External Interrupts

2

On Chip Data RAM Width

16

Length

4mm

Height Seated (Max)

0.6mm

REACH SVHC

No SVHC

RoHS Status

ROHS3 Compliant

Lead Free

Lead Free
